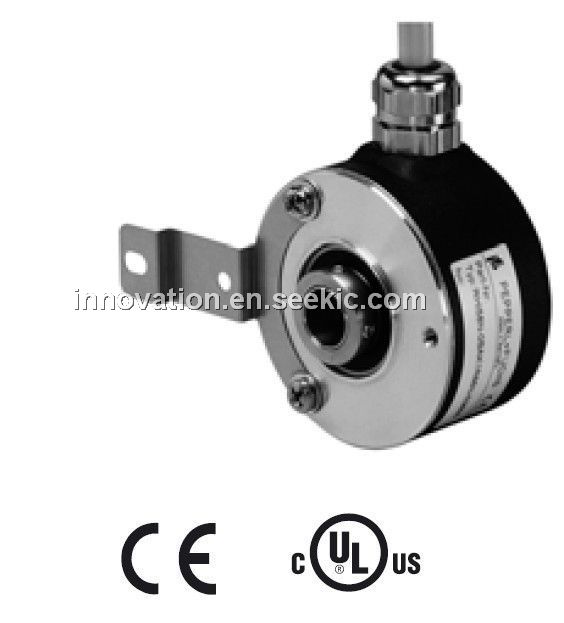

Product Summary

Technical data
General specifications
Detection type photoelectric sampling
Pulse count max. 50000
Functional safety related parameters
MTTFd 140 a
Mission Time (TM) 20 a
L10h 70 E+9 at 6000 rpm
Diagnostic Coverage (DC) 0 %
Electrical specifications
Operating voltage UB 10 ... 30 V DC
No-load supply current I0 max. 60 mA
Output
Output type push-pull, incremental
Voltage drop Ud < 3 V
Load current max. per channel 40 mA , short-circuit protected, reverse
polarity protected
Output frequency max. 200 kHz
Rise time 400 ns
Connection
Cable ?6.5 mm, 4 x 2 x 0.14 mm2, 1 m
Standard conformity
Protection degree DIN EN 60529, IP54
Climatic testing DIN EN 60068-2-78 , no moisture condensation
Emitted interference EN 61000-6-4:2007
Noise immunity EN 61000-6-2:2005
Shock resistance DIN EN 60068-2-27, 100 g, 3 ms
Vibration resistance DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Ambient conditions
Operating temperature -5 ... 80 °C (23 ... 176 °F) , movable cable
-20 ... 80 °C (-4 ... 176 °F), fixed cable
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Material
Housing powder coated aluminum
Flange 3.1645 aluminum
Shaft Stainless steel 1.4305 / AISI 303
Mass approx. 290 g
Rotational speed max. 6000 min -1
Moment of inertia ≤ 40 gcm2
Starting torque ≤ 1.5 Ncm
Shaft load
Angle offset 1 °
Axial offset max. 1 mm
Approvals and certificates
UL approval cULus Listed, General Purpose, Class 2 Power Source
